Garmin LiveScope Plus LVS34 + GLS 10

SKU: 010-02706-00

KEY FEATURES:

NEW PERSPECTIVE MODE MOUNT Use all three modes with the included Perspective Mode Mount.

NEW HIGH RESOLUTION  35% improved target separation over existing LiveScopeTM System.

NEW IMAGE SHARPNESS Brilliantly clear sonar returns, minimal noise and on-screen artifacts (less “ghost tree”).

EASY UPGRADE  The new transducer can be used with an existing LiveScope System black box (GLSTM 10) for an easy upgrade.

VIVID COLOR  Compatible with the vivid color palettes for enhanced detail and clarity.

FORCE® TROLLING MOTOR COMPATIBLE  Sized to fit the Force trolling motor as well as other leading trolling motors.

In the Box:

LiveScope GLS 10 sonar black box
Panoptix LVS34 transducer
Perspective mount

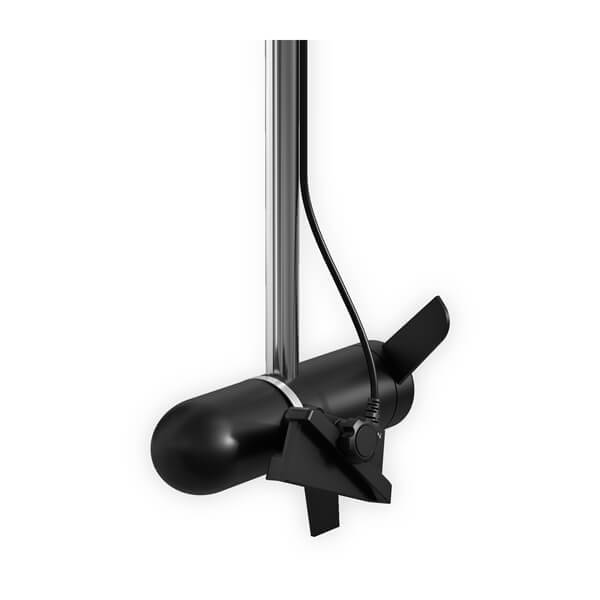

Trolling motor barrel mount

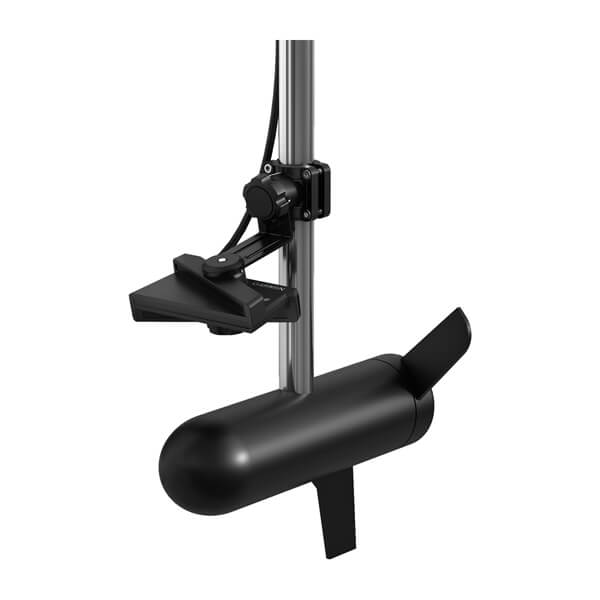

Shaft mount
Power cable
2 meter Garmin Marine Network cable (small connector)
Network adapter cable
Documentation

Physical & Performance
Dimension
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)

Waterproof IPX7
Weight
GLS 10 sonar black box: 4.3 lbs (2.0 kg);

LVS34 transducer: 2.25 lbs (1.02 kg)

Features
Transmit power 500 W
Power usage 21 W typical, 58 W max
Temperature range
GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C

Fuse 7.5 A
Misc
Minimum depth: 3' (0.91 m)
Sonar type: Live
Beamwidth: 20° x 135°
Transducer cable length: 20 ft
Transducer number of pins: 21
Connections Garmin Marine Network Ports
1 (small connector)

Power input 10-32 V
MaxDepth Down and Forward: 200’ (61.0 m)
Frequency 530 - 1,100 kHz
Compass-safe distance 4" (0.1 m)

pictures do not indicate all items for sale.  Listing is for LVS34 and GLS 10 only.
